Overview & Applications

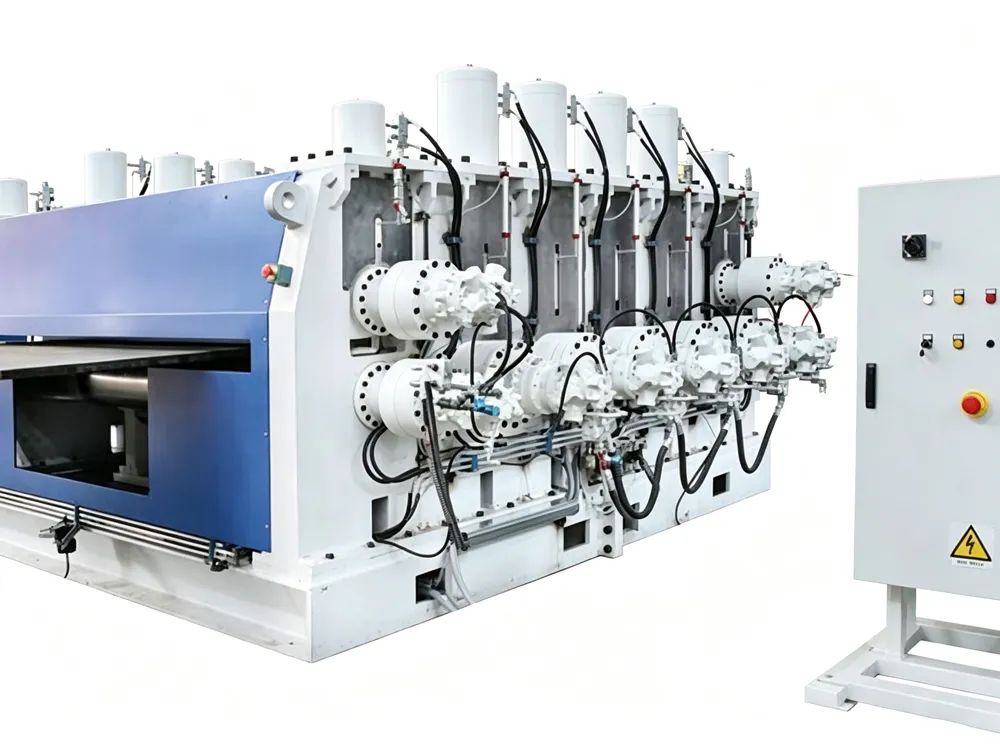

The multi-roll leveler is a dedicated machine for leveling metal sheets and strips. It is used to level uneven plates in a cold state and can be integrated into various rolling mills, uncoiling-leveling-shearing lines for strip products, and steel plate pretreatment lines, or used as a standalone unit.

Structural Features

The whole machine adopts a split frame structure. The lower row of work rolls is fixed on the lower machine base, while the upper row of work rolls is fixed on the movable crossbeam. The movable crossbeam can move up and down and tilt at a certain angle to adapt to the leveling of plates with different thicknesses. To ensure leveling precision, both the upper and lower rows of work rolls are equipped with backup rolls.

Drive System

Both the upper and lower rows of work rolls are driven rolls, utilizing an integrated planetary gear multi-drive system for a compact structural design.
