CNC Boring and Milling Machine
Equipment ApplicationThis machine is primarily used for the milling of continuous casting machine billets. Common billet materials include Q345, Q355, and nickel-based steels, with a hardness of HRC 30-40. This CNC milling machine features an automatic measurement function and dual milling heads. It is designed with two workstations and a gantry-moving structure, while the machining table remains stationary. While one workstation is performing cutting, the other can be used for loading and unloa...
-
CNC Boring and Milling Machine

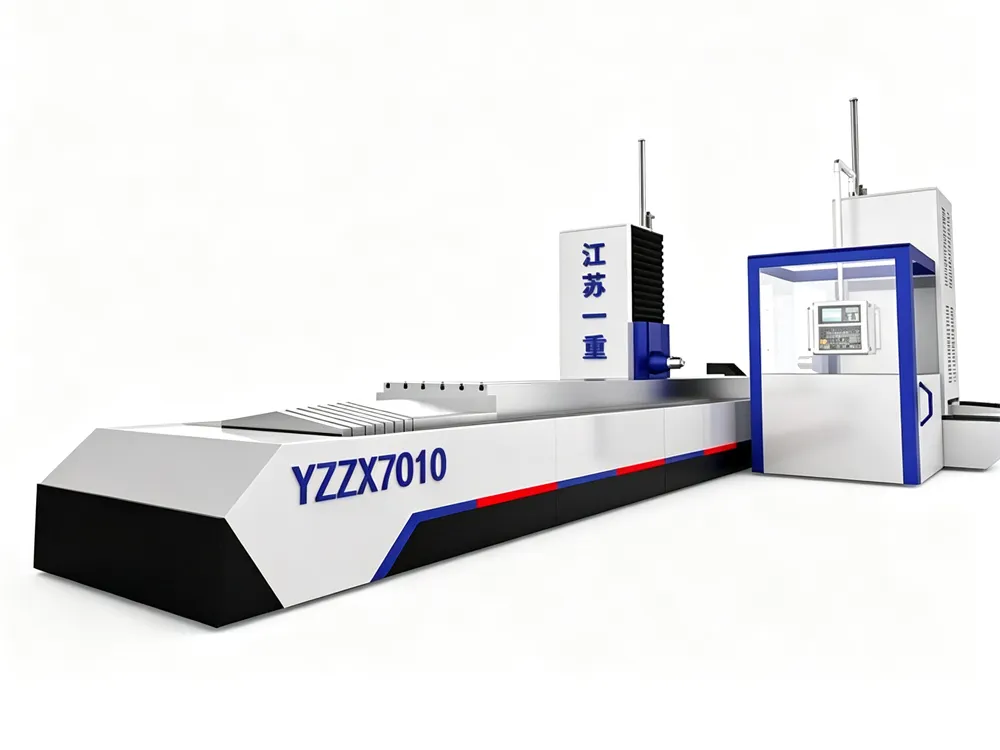

Application and CapabilitiesThis equipment is primarily used for the high-efficiency boring and milling of double-sided holes on boom arms (such as main booms, second-stage booms, third-stage booms, and base booms), slender profiles, and structural components. The two main spindles can perform double-sided machining simultaneously or operate independently. The machining process is numerically controlled (CNC), making operation highly convenient. The machine is designed for automated, high-precis...
-

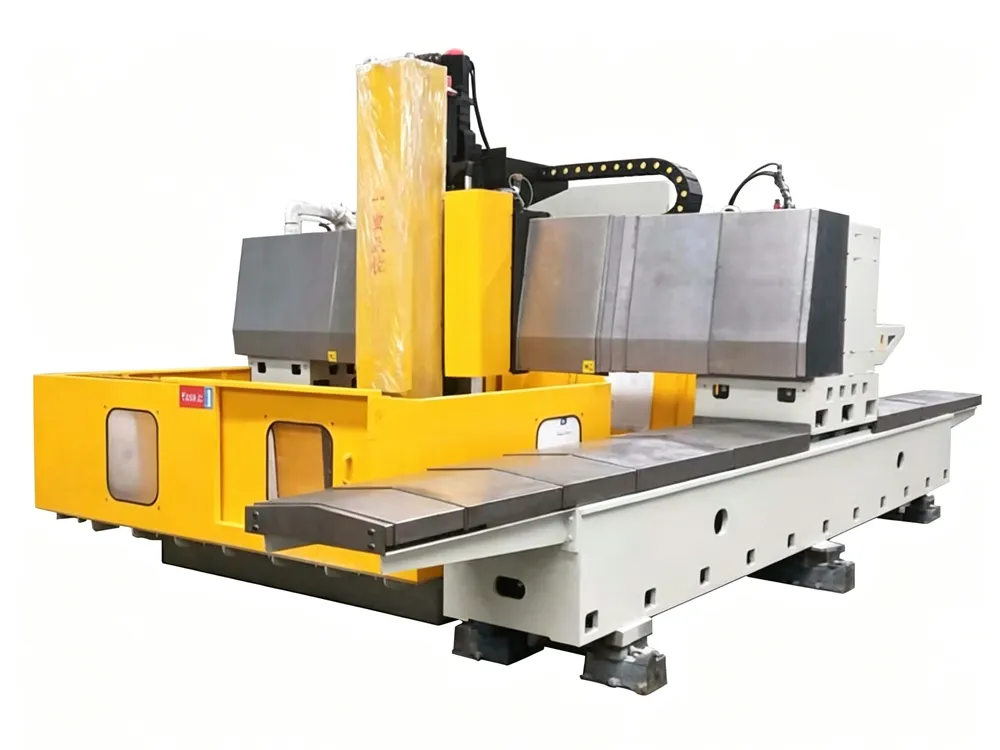

CNC Boring and Milling Machine

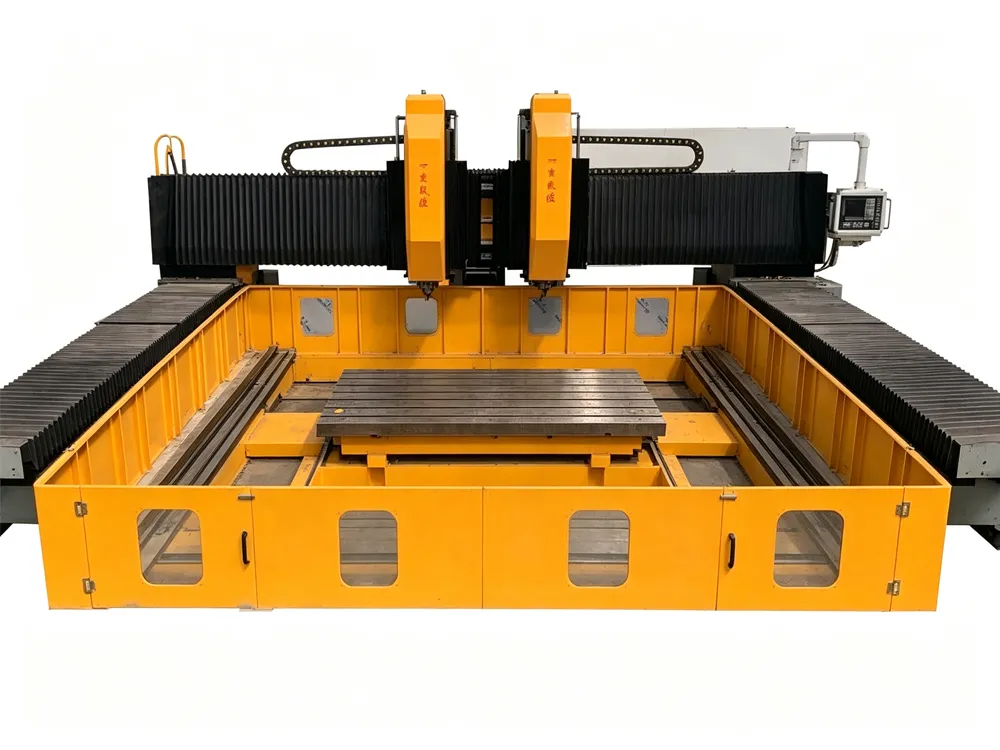

Equipment DescriptionThis machine tool is a three-axis gantry-moving boring and milling machine. It features a stationary worktable, with the gantry frame moving longitudinally (X-axis) on the slide table, the cross-slide moving laterally (Y-axis) along the crossbeam, and the milling head ram moving vertically (Z-axis) along the cross-slide. Finite Element Analysis (FEA) has been applied to effectively predict and optimize the static and dynamic performance of the machine, ensuring superior over...
-
CNC Boring and Milling Machine
Application and CapabilitiesThis equipment is primarily used for the high-efficiency drilling, milling, and boring of double-sided holes on slender profiles and structural components. It is capable of performing various functions on the workpiece, including drilling through holes, drilling blind holes, boring, and milling. The two main spindles can perform double-sided machining simultaneously or operate independently. The machining process is numerically controlled (CNC), making operation highl...
-
CNC Boring and Milling Machine
Equipment CompositionThis equipment consists of a gantry frame, slide table, bed, cross-slide, ram-type milling power head, worktable, tools, lubrication system, chip removal system, cooling and protection devices, balancing system, electrical system, and CNC system.Equipment Features:1. Gantry Frame - Slide Table - BedThe gantry frame, slide table, bed, and worktable all adopt a welded structure. The internal cavities of the components are rationally distributed with reinforcing ribs, providing...
-
CNC Boring and Milling Machine
Equipment PerformanceBy applying Finite Element Analysis (FEA), the static and dynamic performance of this machine tool has been effectively predicted and optimized. This ensures superior overall performance and a high cost-performance ratio. The machine is equipped with low-speed, high-torque milling capabilities. The machining process is numerically controlled (CNC), enabling automated production.Equipment CompositionThe main components of the machine include the bed, worktable, columns, gantr...
-
CNC Boring and Milling Machine

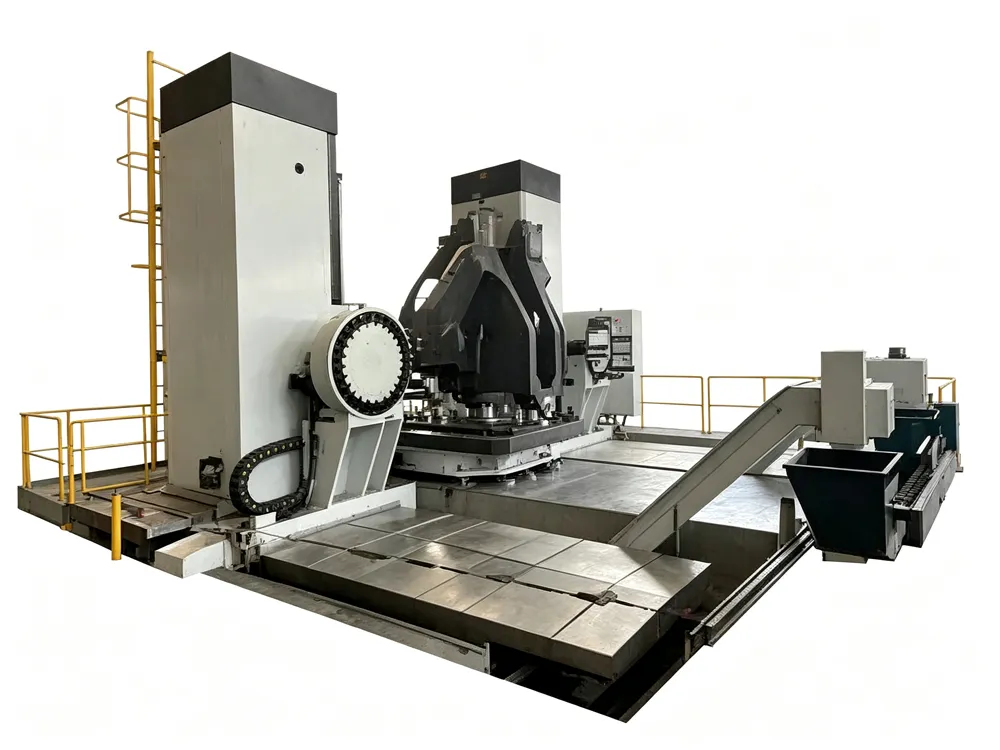

Equipment CompositionThe YZZX-2520 CNC Double-Sided Boring and Milling Machine consists of symmetrically arranged beds on both sides, cross-slides, columns moving longitudinally (front and back), power heads moving vertically (up and down), and a central rotary indexing worktable. It is also equipped with an automatic chip conveyor, a cooling device, a pneumatic system, an electrical system, and a tool magazine.Overall Structural RequirementsMajor components such as the bed, columns, and spindle...
-
CNC Boring and Milling Machine
Machining Capabilities and General FeaturesThis machine tool is equipped with versatile machining functions, including milling, boring, drilling (drilling, expanding, and reaming), tapping, and spot facing. It features mature processing technology and delivers stable, reliable product quality. With its rational layout, convenient operation, reliable performance, easy maintenance, and aesthetically pleasing appearance, it ensures an excellent user experience.Machine Layout and KinematicsThe machi...
-
CNC Boring and Milling Machine

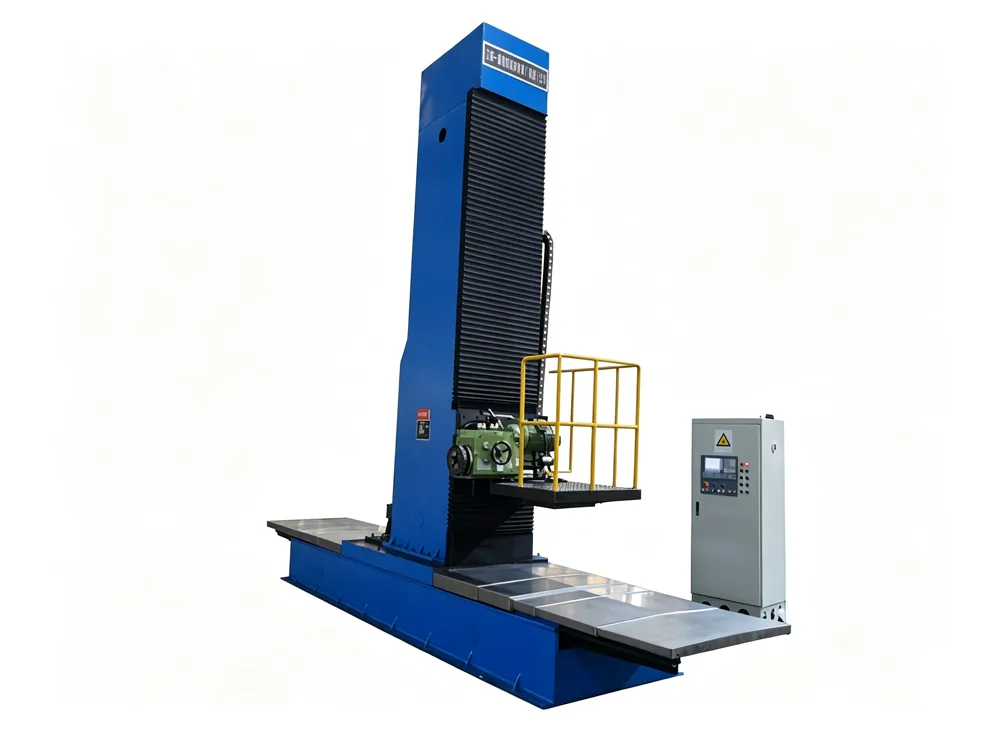

Equipment CompositionThis equipment consists of a milling head, elevating column, bed, mechanical feed system, electrical control system, lubrication system, guideway protection device, automatic chip recovery device, hydraulic workpiece clamping fixture, and cutting tools.Control System and FeaturesThe machine is equipped with a CNC system, making it highly convenient to operate. It features an RS232 interface, and the operating interface supports human-machine interaction, error compensation,...
