Machine Tool Features

This innovative model features an optimized elevated bridge-type (gantry) design. The motion transmission mechanism is effectively isolated from the workpiece machining area, which not only optimizes the operating environment but also expands the range of machinable workpiece materials.

The machine features an integral gantry-type bed with high rigidity and heavy mass. This design provides excellent shock absorption and vibration isolation, raising the natural frequency to completely prevent resonance and chatter.

Designed with a thermally symmetrical structure, a center-driven single ball screw, and a longitudinally moving crossbeam, it delivers superior synchronous movement and coordinated linkage performance.

With a compact footprint, it is highly suitable for production line layouts.

Integrating multiple patented technologies and distilling over 30 years of industry expertise, this machine perfectly combines speed and efficiency, precision, ergonomic operability, and flexible expandability.

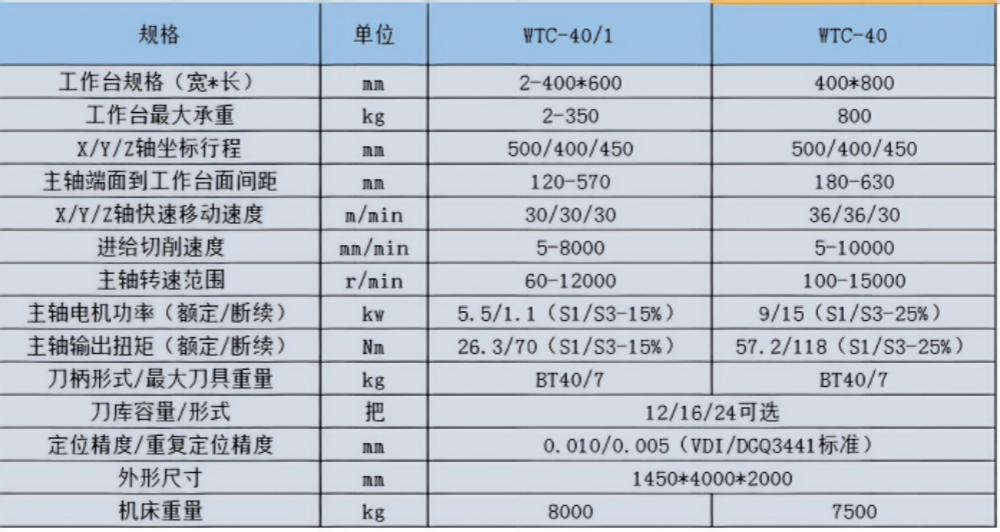

Technical Specifications
