Overview

This equipment is suitable for the drawing and forming processes of metal materials. It can also perform operations such as flanging, bending, and pressing.

Control System

The machine is equipped with an independent hydraulic control system and electrical system. It supports centralized control via console buttons as well as manual handwheel control, enabling both manual and semi-automatic operation modes.

Adjustability & Functions

The working pressure and slide stroke range can be adjusted according to specific process requirements. The equipment also features pressure holding with dwell time, as well as directional valve cushioning during reversal.

Forming Processes

Both the working pressure and the stroke range of the slide can be adjusted to meet process requirements. The machine is capable of performing both fixed-pressure and fixed-stroke forming processes. In the fixed-pressure forming process, the machine automatically holds the pressure with a dwell time before executing an automatic return stroke after pressing.

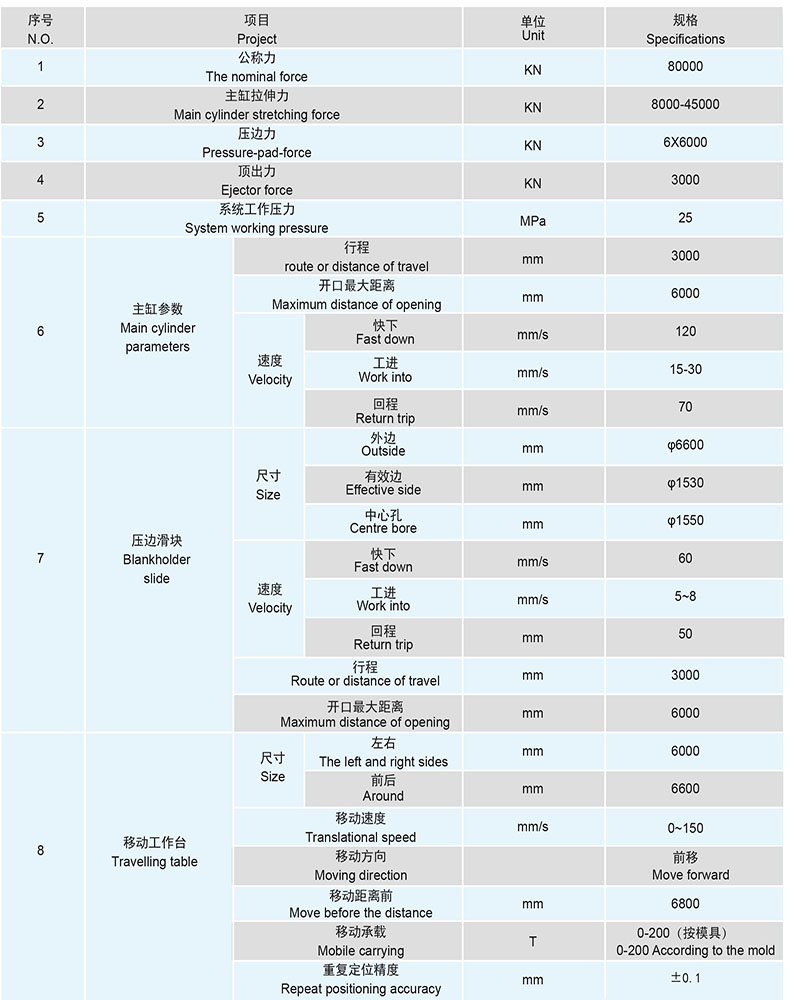

Technical Parameters
