The Portable Beveling Machines feature the following key characteristics:

Capable of processing thicknesses from 5mm to 80mm with unlimited processing length.

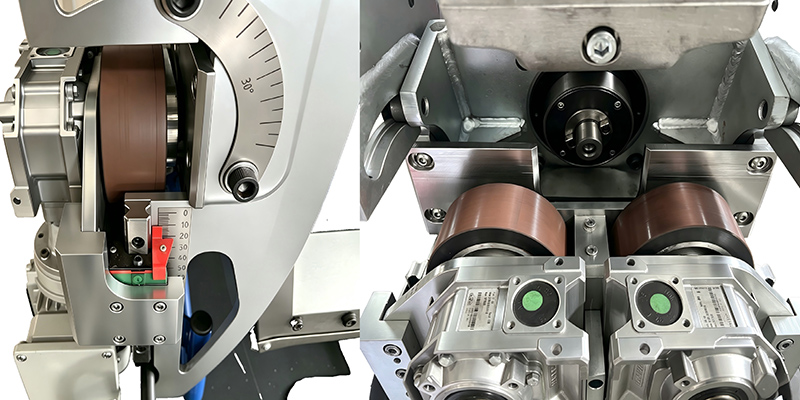

Adjustable beveling angle from 15° to 60°. The maximum bevel width is 62mm at 15° and 50mm at 45°.

Stepless variable beveling speed ranging from 0 to 1.2 m/min, achieving a surface finish of Ra 3.2.

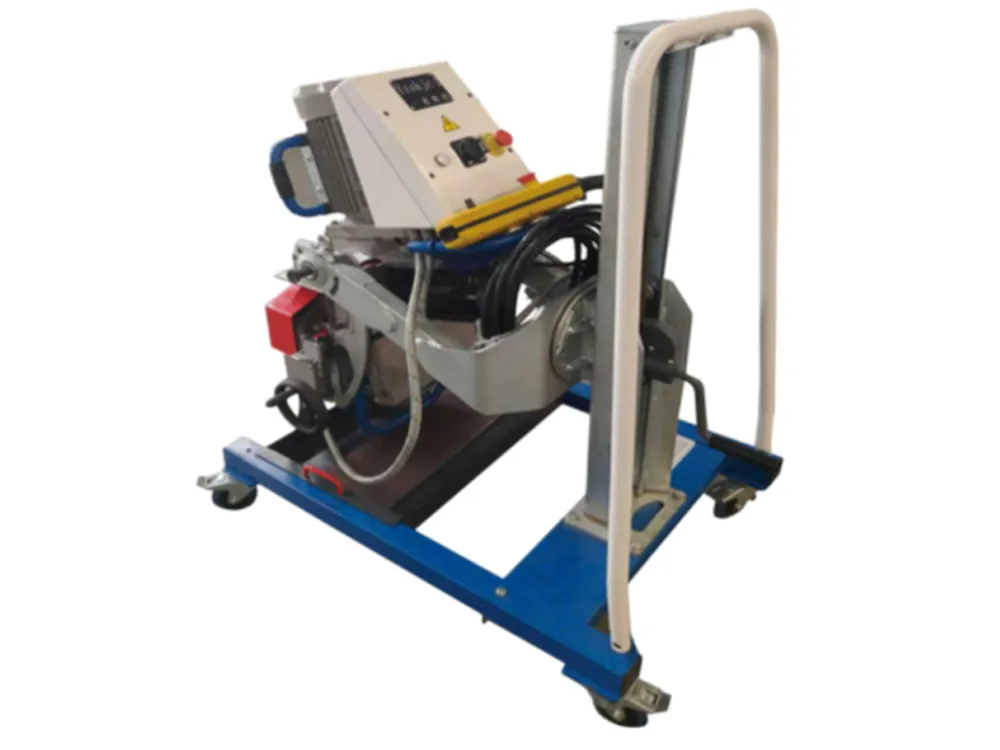

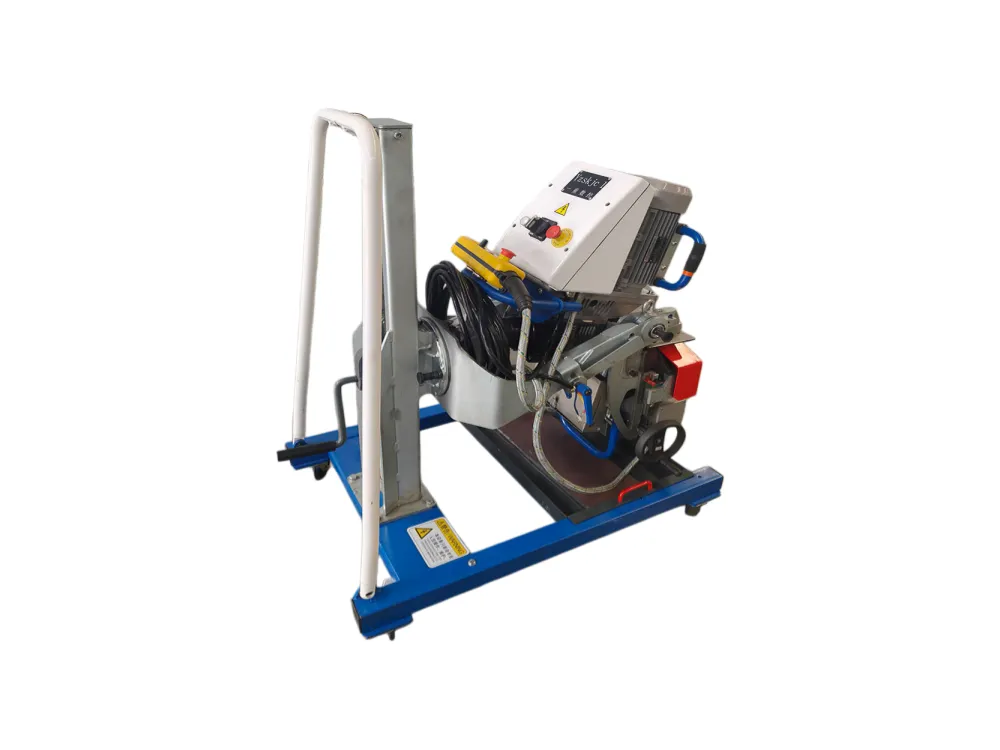

The UZ-50 model can rotate 180° for double-sided beveling without flipping the workpiece, making the pro

cess convenient and time-saving.

The UZ-50 beveling machine is mounted on a 3D robotic arm with a floating mechanism, allowing automatic compensation for uneven ground.

The 3D robotic arm can be easily detached, enabling the machine to operate suspended in the air without touching the ground.

The electrical circuits are enclosed in a dust-proof and sealed box, equipped with essential safety devices.

CE certified, ensuring safe, reliable, and durable performance.

Technical Parameters:

1、Maximum bevel width: 62mm (at 15°) and 50mm (at 45°).

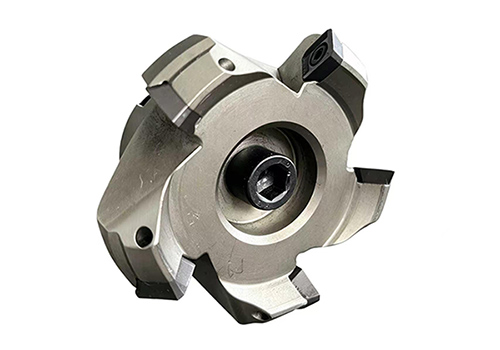

2、Milling cutter head diameter: 85mm.

3、Number of blades: 5 blades / 9 blades

4、Main power head power: 4 kW

5、Processing thickness: 5-80 mm

6、Applicable materials: Stainless steel, carbon steel, high-strength steel, aluminum, titanium, copper, etc.

7、Beveling speed: Stepless variable speed from 0 to 1.2 m/min

8、Feed motor power: 0.24 kW (2 motors)
