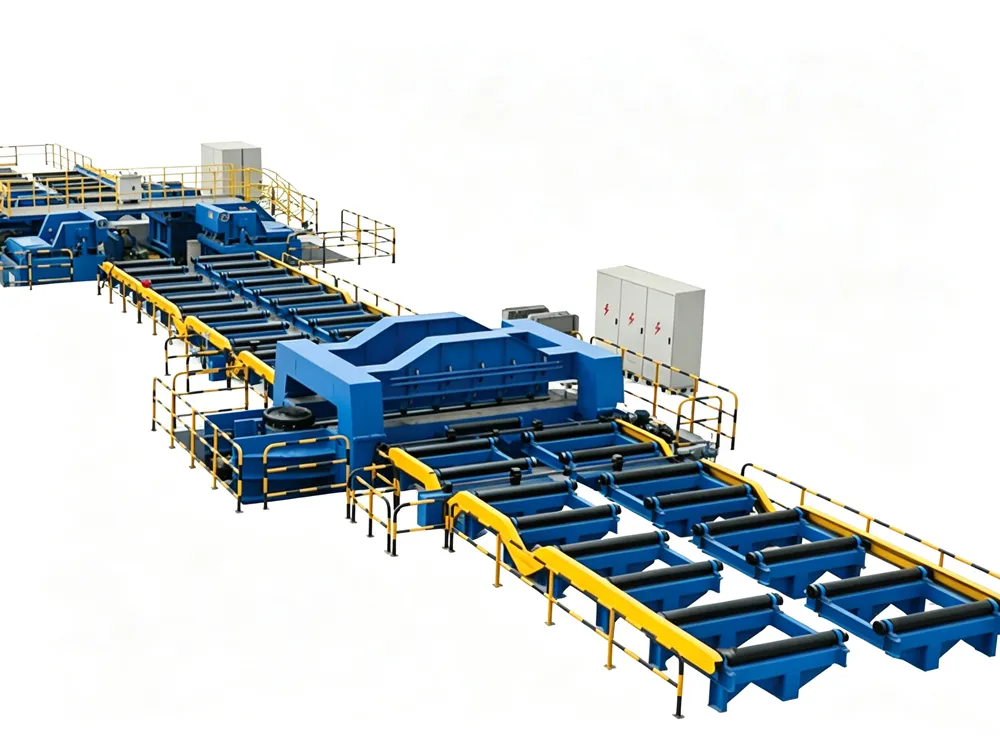

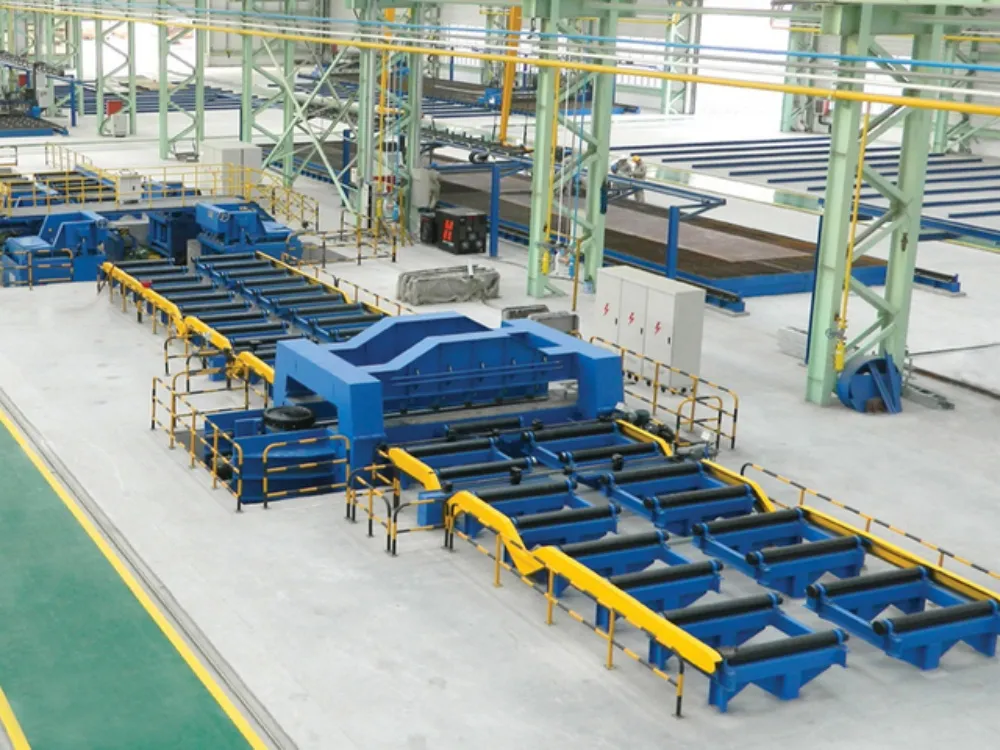

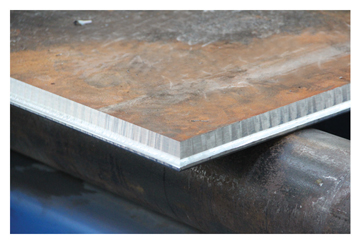

The CNC Roller Bed Plate Four-Sided Beveling milling machine is a specialized beveling processing equipment designed for the plate prefabrication scenarios in steel structures, pressure vessels, and construction machinery. It can automatically complete the bevel milling and forming of all four sides of a plate in a single pass. The processing thickness ranges from 6mm to 180mm, with no limit on processing length. The length of cut-to-size single plates can be set according to user selection, and the processing width can be customized based on user requirements. This machine eliminates the drawbacks of traditional single-side sequential milling, such as tedious processes and large positioning errors. It is highly suitable for standardized bevel prefabrication of plates in large batches, serving as core automated equipment for the precision machining stage of plate blanking.

Core Product Advantages

1. One-Stop Four-Side Synchronous Processing with Significant Efficiency Improvement

With a single loading and positioning operation, the equipment synchronously completes the bevel cutting on all four sides of the plate, eliminating the need for multiple flipping and repeated clamping and positioning.

2. Heavy-Duty Rigid Frame for High-Intensity Continuous Production

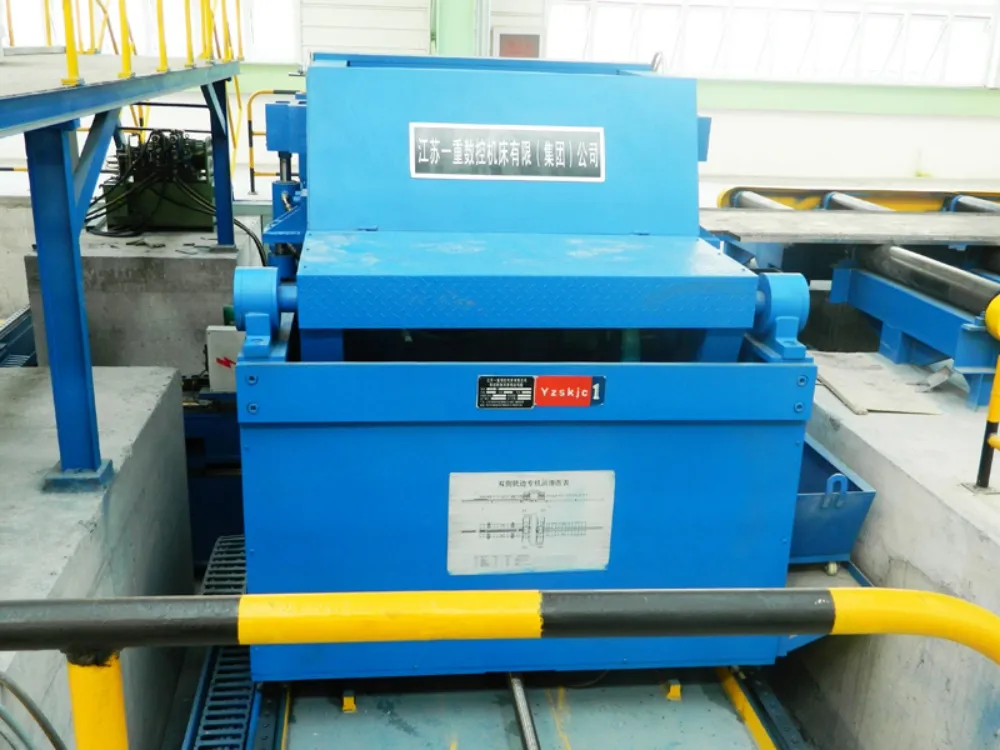

The entire machine features a reinforced heavy-duty structure, with rigidity optimized to withstand the high cutting resistance generated during thick plate machining. Even during prolonged, uninterrupted milling of high-strength steel, the frame remains vibration-free. This ensures high consistency in bevel dimensions and significantly reduces the rejection rate of batch workpieces.

3. Intelligent CNC Control to Lower Operational Threshold

The CNC system comes with preset parameters for various standard beveling processes. Different forming cutters correspond to different groove profiles, allowing new operators to start working after brief training. The equipment can monitor the feed rate and cutter operating conditions, facilitating troubleshooting during maintenance and reducing the workload for manual quality inspection and machine adjustment.

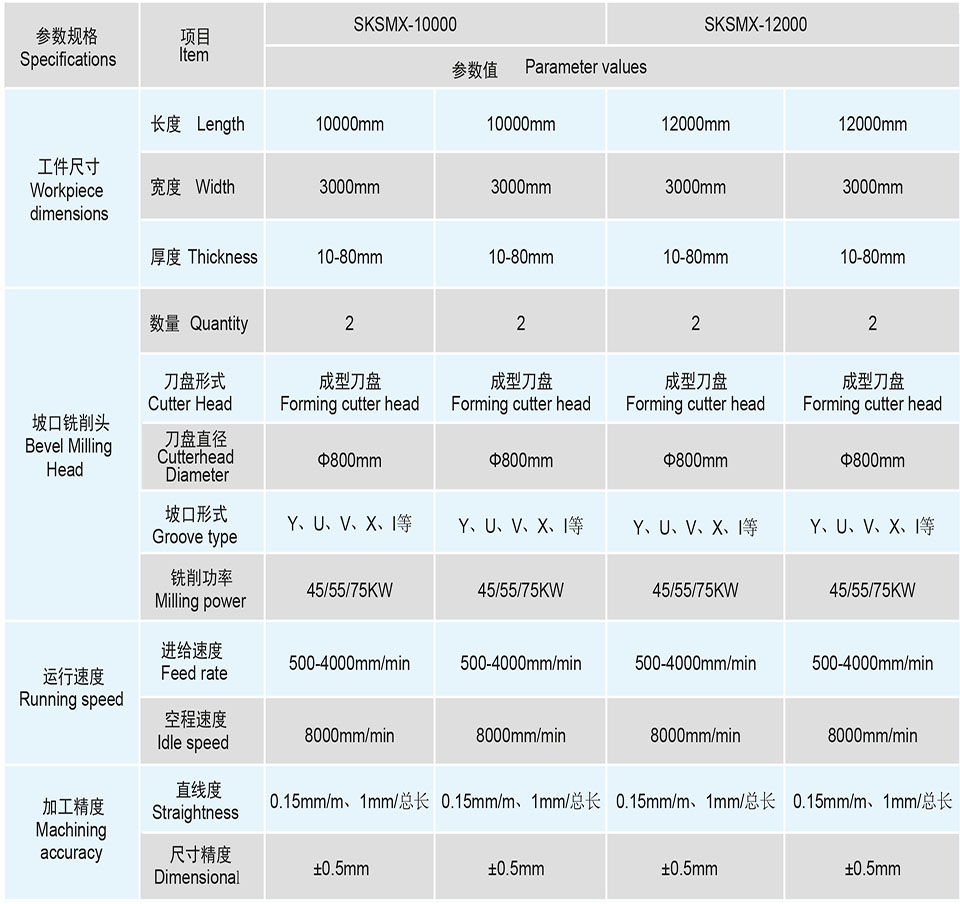

Technical Parameters

Note: Technical parameters can be customized according to customer requirements.
